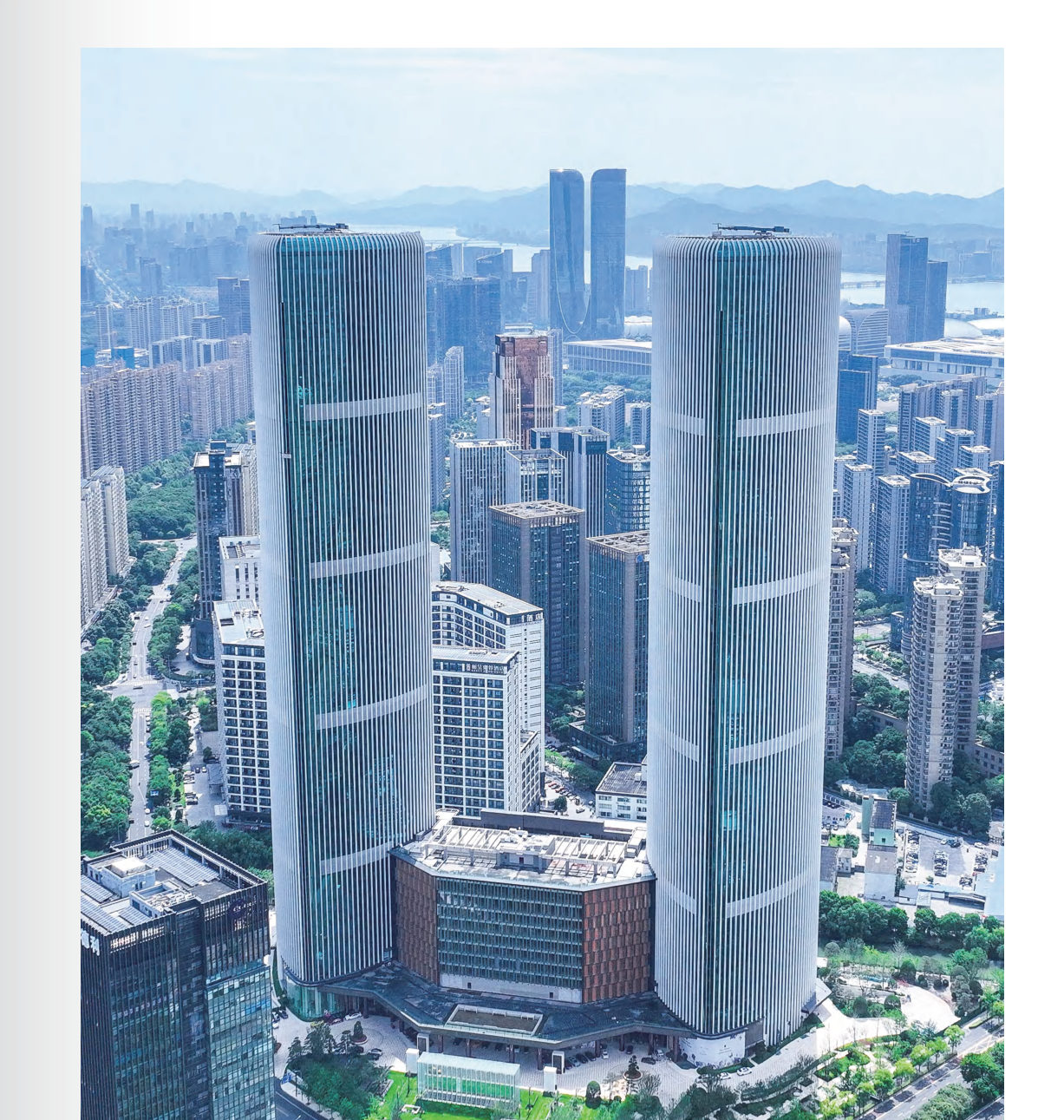

Hangzhou New World Guili Center, unitized curtain wall
Product systems

Curtain walls, Neisen system windows and doors, glass facades.

Unitized, stick, structural glazing, stone, metal, photovoltaic and double-skin curtain walls, and the Neisen range of system windows and doors. Every system is engineered by the in-house design institute and manufactured at the Shaoxing plant.

Curtain wall Windows and doors Glass facades Prefabricated construction
Curtain wall systems

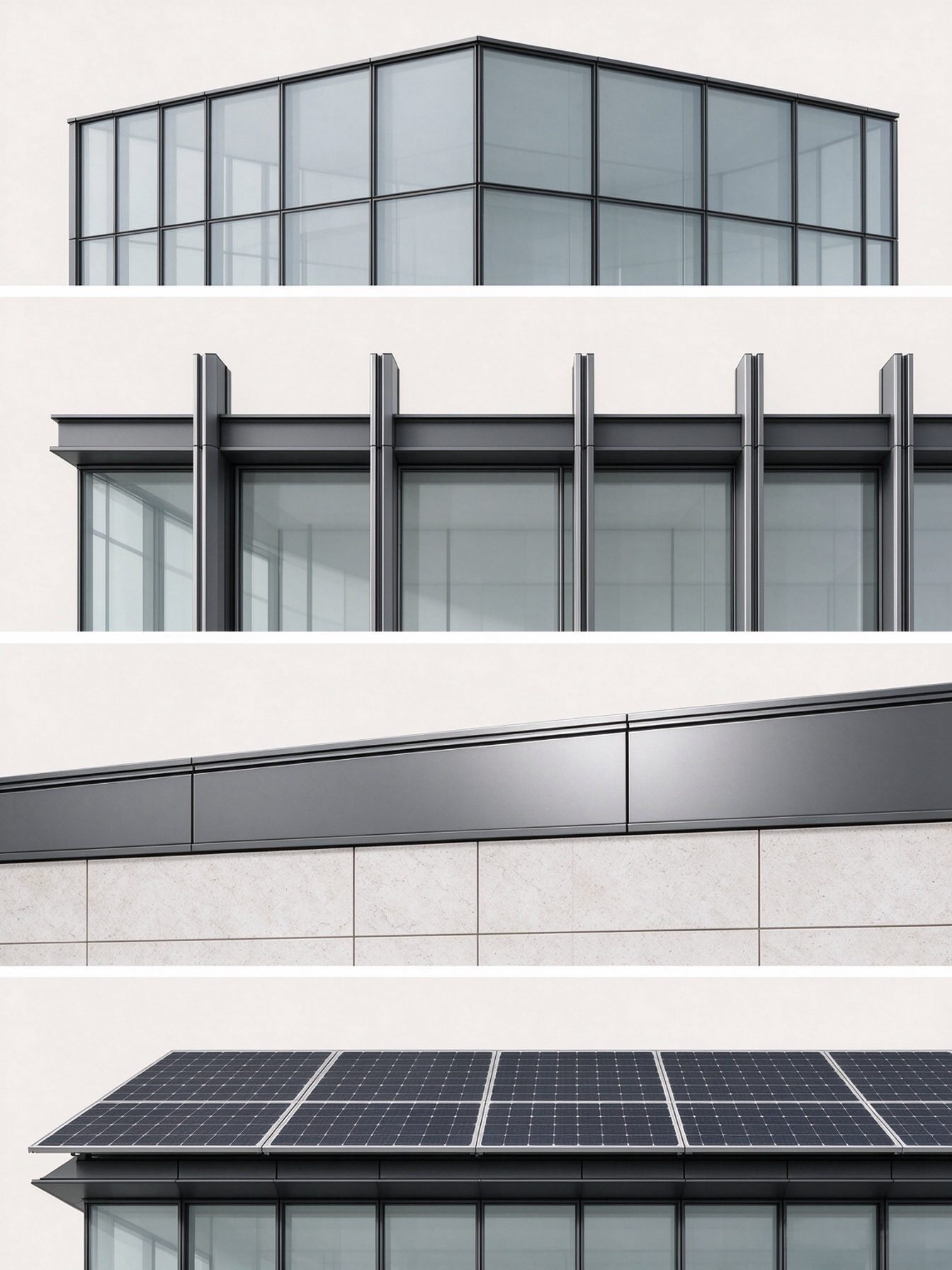

Shenzhen China Merchants Plaza, unitized curtain wall

Unitized curtain wall

Storey-height panels assembled and glazed in the factory, hoisted and fixed floor by floor without external scaffolding. Used on towers and large public buildings such as the Shenzhen World Exhibition and Convention Center.

Stick curtain wall

Mullions and transoms installed on site, then glazed. Suited to irregular geometry, podiums, renovations and lower-rise envelopes.

Structural silicone glazing

Glass bonded to a concealed frame with structural silicone, giving a flush exterior with no visible pressure plates.

Stone, metal, photovoltaic and double-skin

Stone and aluminium panel cladding from the company's own coating line, building-integrated photovoltaic facades, and double-skin breathing facades developed by the design institute.

Performance and testing

Air infiltration, water penetration, wind load and thermal performance are specified per project and verified on full-scale performance mock-ups before fabrication starts. Domestic projects are tested to GB/T 21086; international projects to ASTM E283, E331 and E330 or AAMA 501, as the specification requires.

Request system data for your project
Neisen system windows and doors The Neisen system

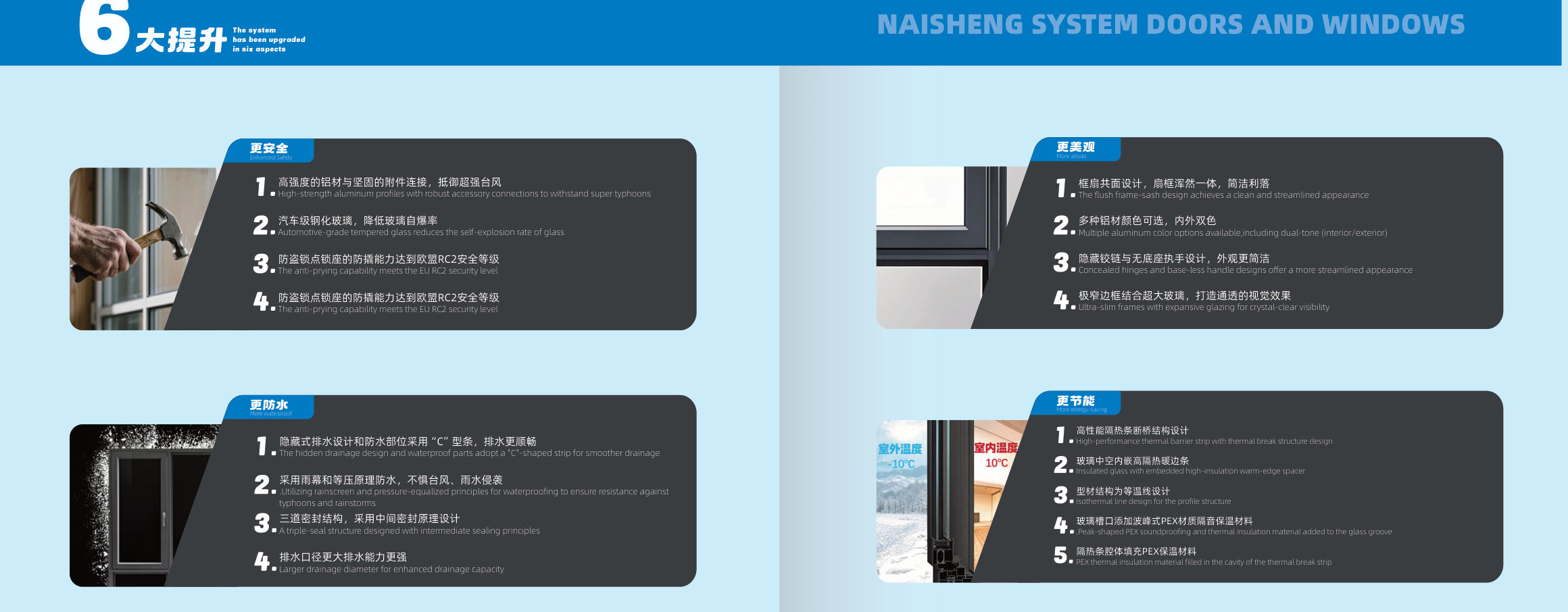

Neisen is the company's system window and door brand. Profiles, hardware, glass, gaskets, tooling and process are designed together, so wind, water, air, thermal and acoustic performance are guaranteed by the system rather than by the assembler.

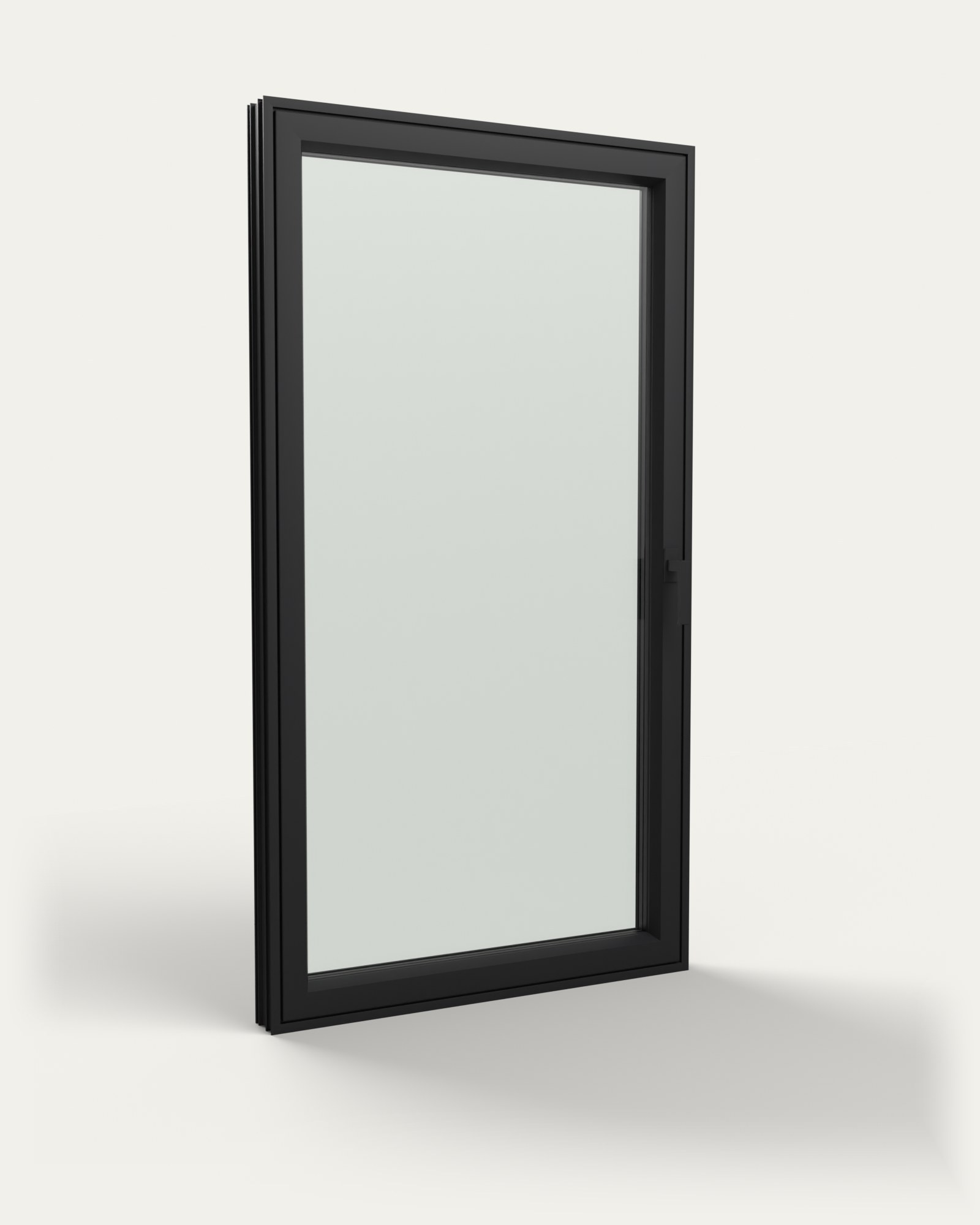

Neisen 84 Tilt & turn window, rendering
84Tilt & turn window

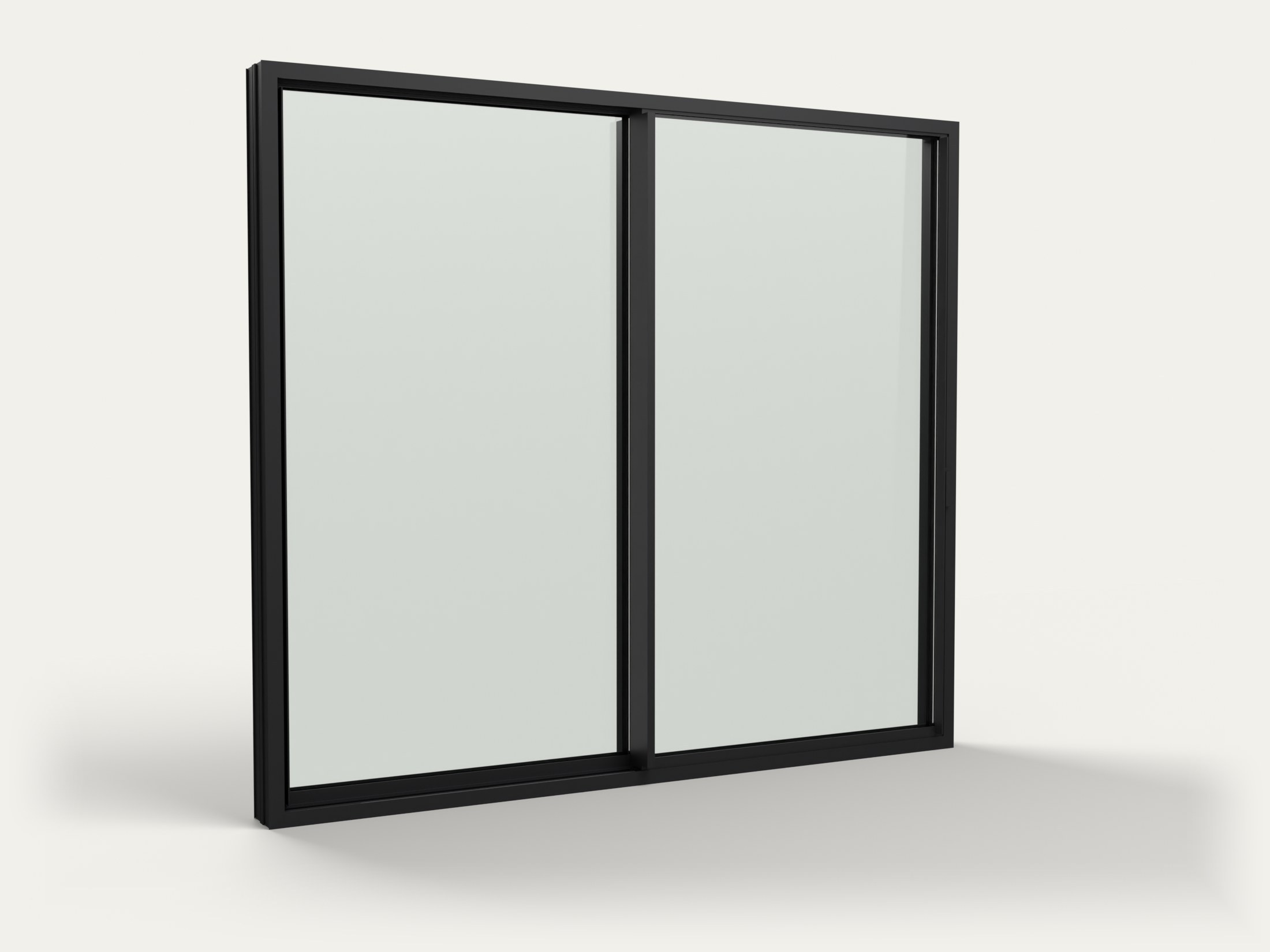

Neisen 174 Slim sliding door, rendering
174Slim sliding door

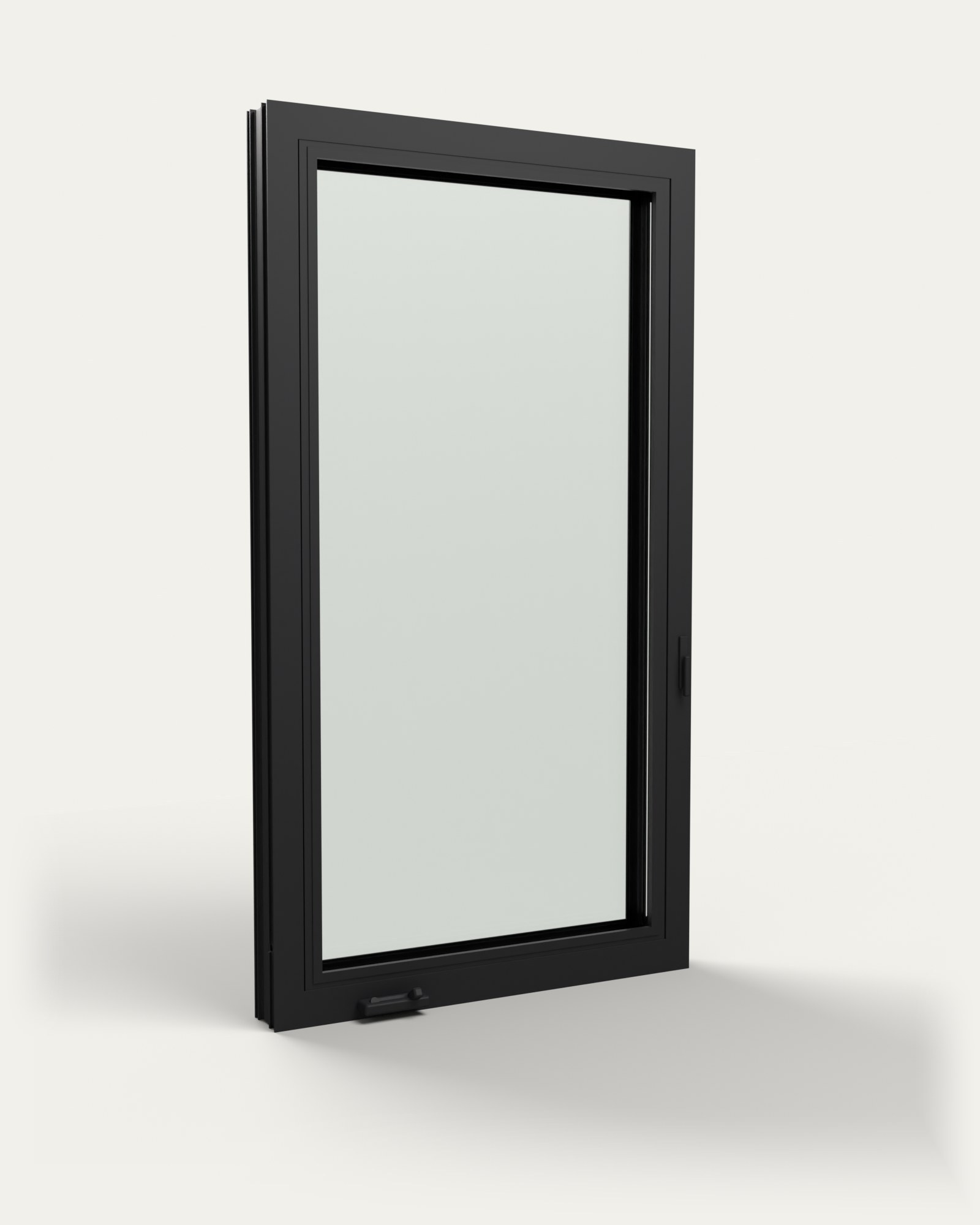

Neisen 105 Crank casement, rendering
105Crank casement

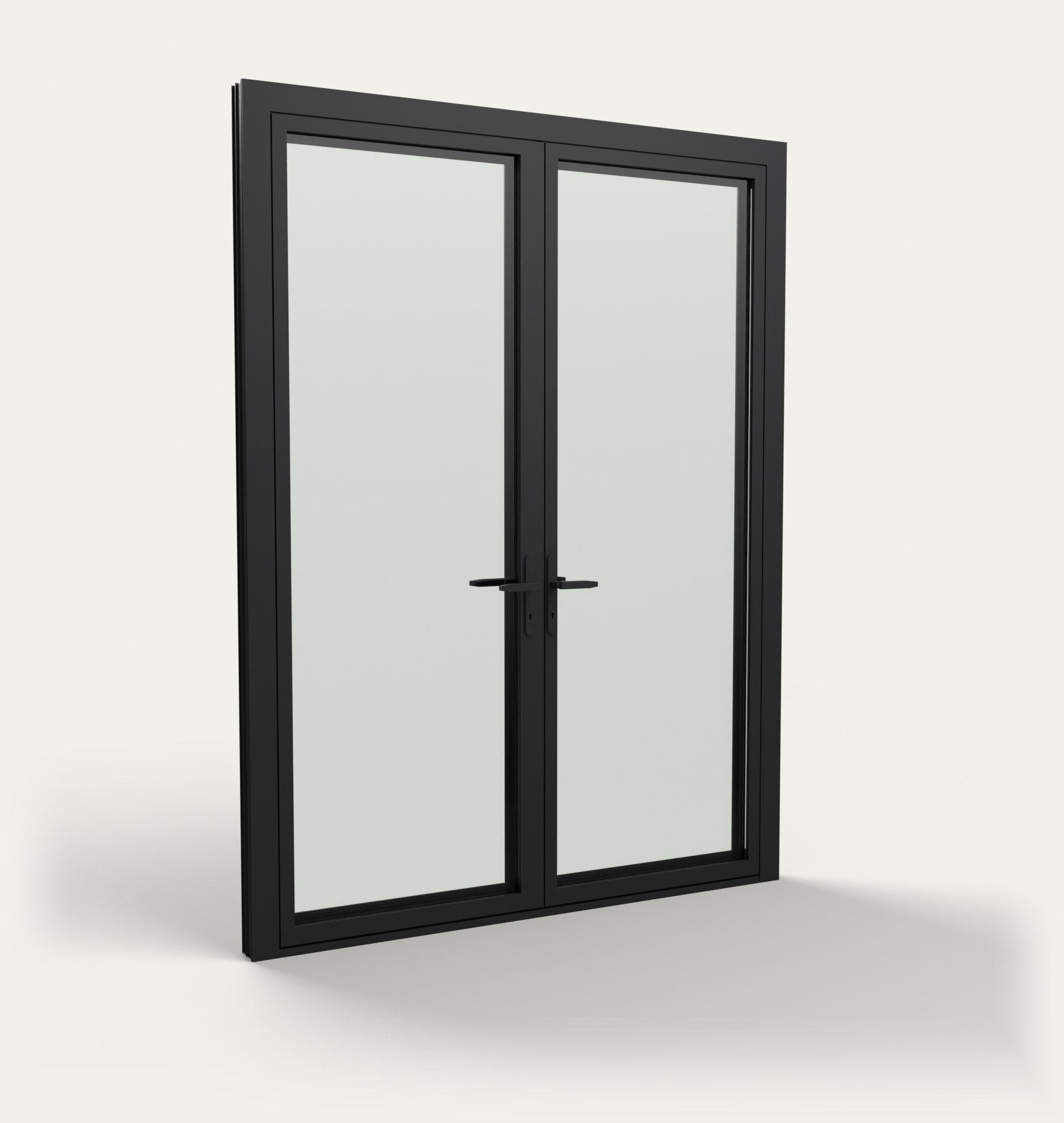

Neisen 95 Double outswing door, rendering
95Double outswing door

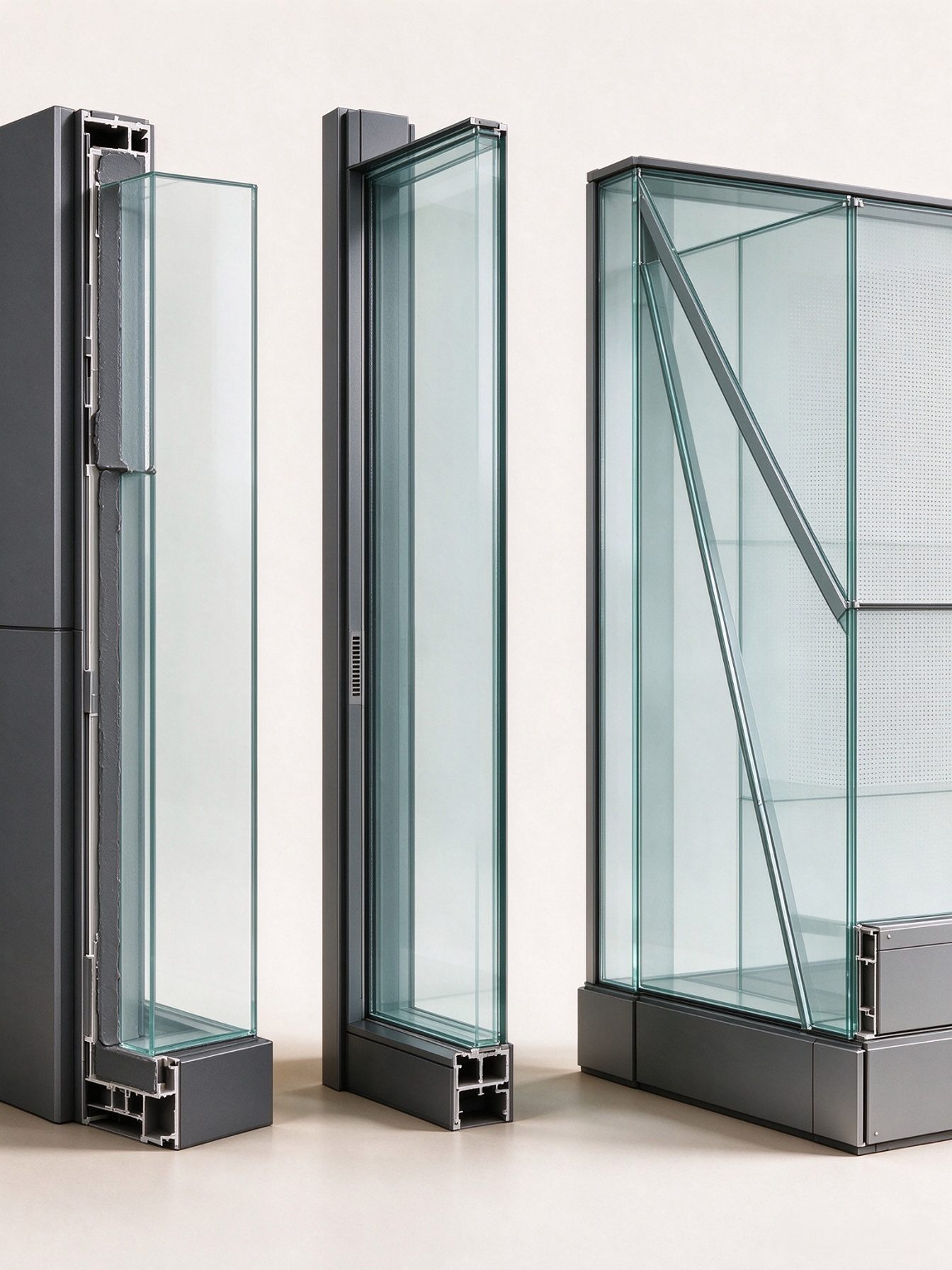

Shenzhen Sea World Culture and Arts Center
Glass facades

Structural glazing, double-skin and bespoke glass envelopes.

Structural silicone and toggle-retained glazing, ventilated double-skin facades with cavities for natural ventilation and thermal buffering, and custom geometry with fritted or solar-control glass. Glass-fin unitized facades are a patented company system.

Public building projects
Baoye industrialised construction base, rendering
Prefabricated construction

Baoye Group's industrialised building system, with the envelope prefabricated alongside it.

Baoye Group has developed industrialised construction since the 1990s and operates national-level industrialised housing and prefabricated building bases. Its system covers precast concrete components, steel structures and prefabricated interior fit-out, produced in factories and assembled on site.

Within this system, Baoye Curtain Wall supplies the prefabricated envelope: unitized curtain wall panels and factory-glazed window walls produced in Shaoxing to the same module as the structure and hoisted with it, so enclosure follows the structural cycle floor by floor.
